Leofoto X Mountain Forged Juggernaut S3 Carbon Fibre Tripod with MA-40SXO Head

Description

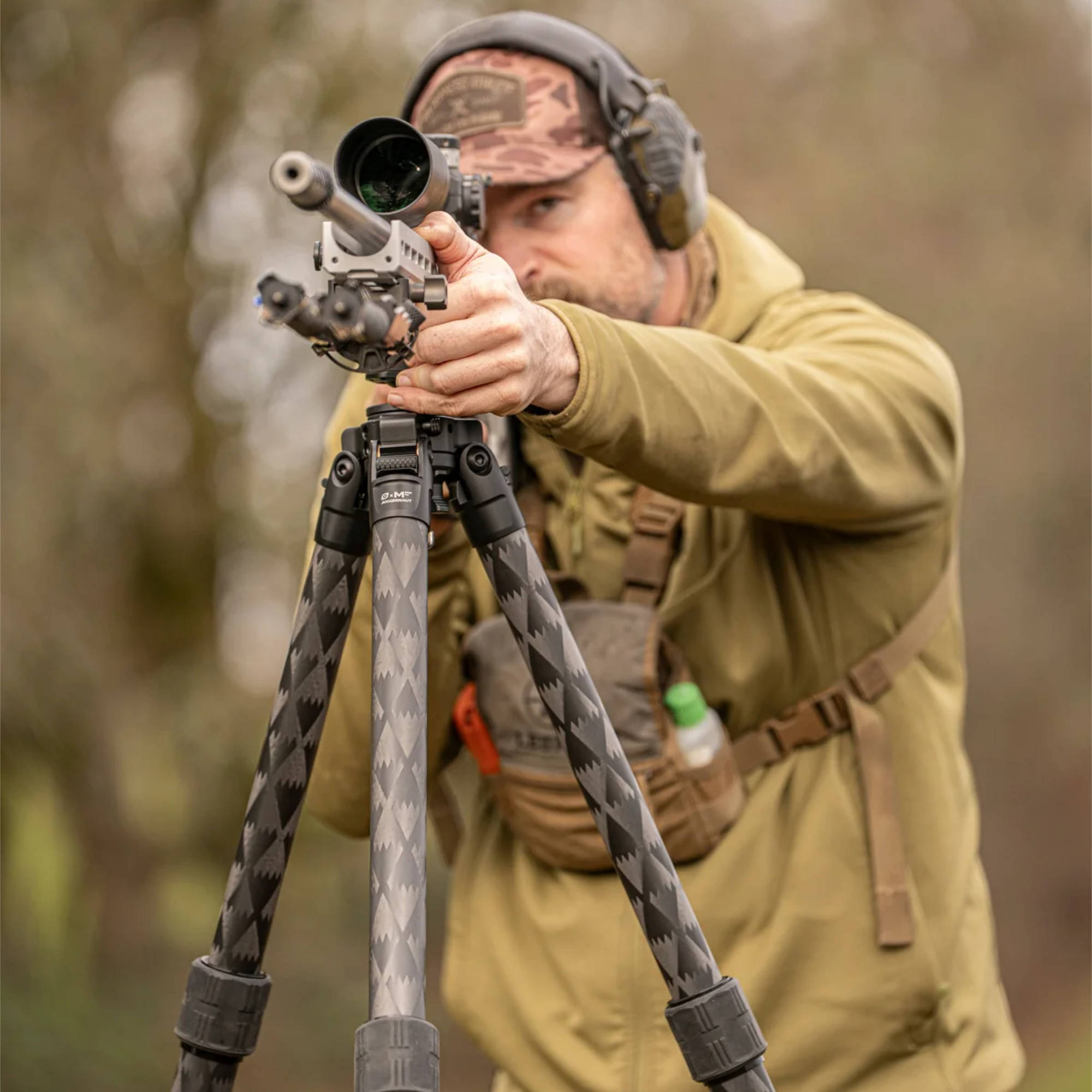

Leofoto x Mountain Forged Juggernaut S3 Carbon Fibre Tripod with MA-40SXO Head

The Leofoto x Mountain Forged Juggernaut S3 Tripod System is the next evolution in precision shooting support systems — purpose-built for shooters who demand uncompromising rigidity, rapid deployment, and enhanced portability in the field. Combining Leofoto’s renowned carbon fibre engineering with Mountain Forged’s practical precision shooting expertise, the Juggernaut S3 delivers elite-level performance for PRS competition, long-range hunting, tactical applications, spotting, and extreme field use.

Designed around a compact 3-section inverted leg architecture, the Juggernaut S3 strikes the perfect balance between maximum stability and reduced folded length. Unlike traditional heavy-duty shooting tripods that can become cumbersome during transport, the S3’s inverted leg design allows the system to collapse into a more compact footprint while maintaining exceptional structural rigidity once deployed.

At the core of the system are enormous 44.7mm, 40mm, and 36mm Toray 10-layer carbon fibre leg tubes — the thickest tubes available in any 3-section tripod currently on the market. This oversized construction dramatically reduces flex, vibration, and movement under recoil, creating an incredibly stable shooting platform capable of supporting rifles, optics, thermal systems, spotting scopes, and accessories up to 120lbs.

The premium Toray carbon fibre construction provides outstanding strength-to-weight performance while also helping dampen vibration far more effectively than aluminium alternatives. The result is faster target reacquisition, improved shot consistency, and enhanced confidence during demanding shooting scenarios.

The Juggernaut S3 incorporates Leofoto’s patented pull-down tripod locking system, specifically engineered for high-load shooting applications. This ergonomic locking mechanism securely locks the legs into position and prevents unwanted slippage or collapse during use. The hollow apex design also allows compatibility with optional center columns for spotting and observation setups, adding further versatility to the platform.

At the heart of the system is the upgraded LQ Urban Apex — an advanced structural design developed to handle ultra-thick carbon fibre leg tubes while maintaining Leofoto’s signature quick-swap modularity and compact apex footprint. This results in an incredibly strong yet refined tripod chassis capable of handling aggressive field use and heavy rifle systems with ease.

Included with the Juggernaut S3 is the next-generation MA-40SXO Juggernaut Head, engineered specifically for precision rifle applications. Featuring a large 40mm ball design, the head offers dramatically increased locking power and smoother movement compared to traditional rifle support heads. The low-profile configuration keeps the rifle closer to the tripod apex, improving balance and reducing leverage-induced movement under recoil.

The advanced dual-rail clamp system supports both Arca-Swiss and Picatinny mounting standards, providing exceptional versatility across modern rifle chassis and accessory systems. Fine-adjustment tension control for Arca rails combined with a dedicated Picatinny locking knob ensures a secure and repeatable fit, while six additional security screws can be tightened for maximum rigidity during heavy recoil or competition use.

Field deployment is exceptionally fast thanks to Leofoto’s heavy-duty LN rubber twist locks. Based on the proven design originally introduced in the LN Mountain Series in 2015, the twist locks require only a simple 1/4-turn operation for rapid extension and reliable locking under heavy load and adverse conditions.

Leofoto’s proven X-Series angle stop system enables true single-handed leg angle adjustment, allowing shooters to quickly adapt to uneven terrain, prone positions, barricades, steep inclines, or awkward shooting angles. Three selectable angle positions — 24°, 55°, and 85° — provide exceptional versatility in real-world environments.

For demanding outdoor use, the Juggernaut S3 also includes extra-long 5-inch steel foot spikes that can rapidly replace the standard rubber feet for improved grip and stability on mud, loose dirt, rocky surfaces, snow, or uneven terrain.

Whether you’re shooting PRS matches, hunting in rugged backcountry terrain, running spotting equipment, or engaging targets at extreme distances, the Leofoto x Mountain Forged Juggernaut S3 is engineered to deliver uncompromising stability, precision, and reliability in every environment.

Key Features

• Purpose-built precision shooting tripod system
• Includes MA-40SXO Juggernaut Head
• Compact 3-section inverted leg design
• Optimised balance between rigidity and portability
• Massive 44.7mm / 40mm / 36mm carbon fibre leg tubes
• Premium Toray 10-layer carbon fibre construction
• Maximum load capacity: 120lbs
• Patented Leofoto pull-down tripod locking mechanism

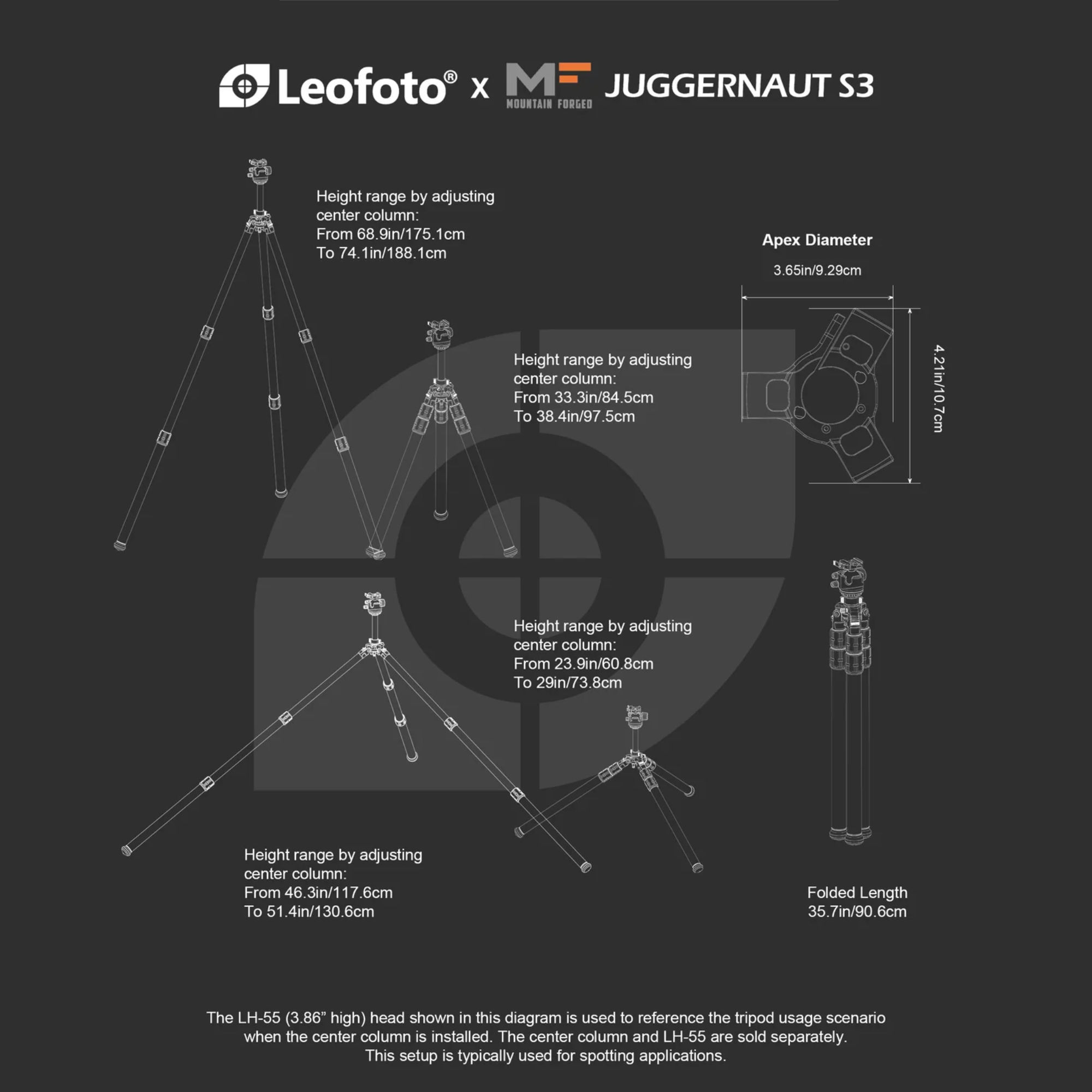

• Hollow apex compatible with spotting center columns
• Upgraded LQ Urban Apex quick-swap system
• Low-profile 40mm ball head for superior locking strength
• Ultra-smooth head movement for precision tracking
• Arca–Picatinny dual-rail clamp system
• Fine-adjustment Arca lever with dedicated Picatinny knob
• Six additional security screws for maximum stability
• Heavy-duty LN rubber twist locks
• Fast 1/4-turn deployment system
• Single-handed angle stop adjustment
• Three leg angle settings: 24°, 55°, and 85°
• Includes extra-long 5-inch steel foot spikes
• Ideal for PRS, ELR, hunting, spotting, and tactical shooting applications

Specifications

Tripod

• Leg Sections: 3
• Leg Diameter: 44.7mm / 40mm / 36mm
• Material: Toray 10-Layer Carbon Fibre
• Maximum Load Capacity: 54kg

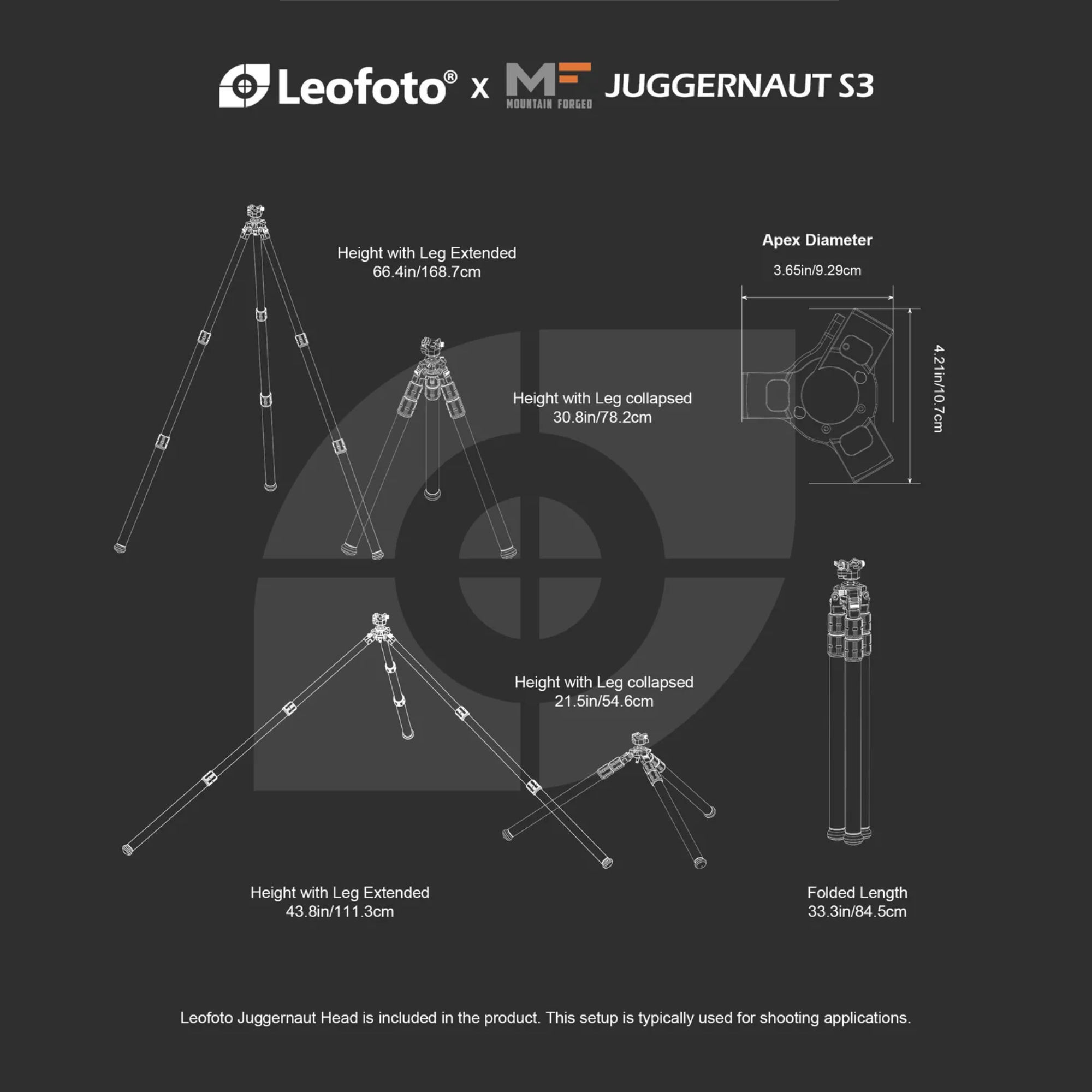

• Folded Length: 84.5cm / 33.3in
• Height with Legs Extended: 168.7cm / 66.4in
• Height with Legs Collapsed: 78.2cm / 30.8in
• Low Position Height: 54.6cm / 21.5in
• Mid Position Height: 111.3cm / 43.8in
• Apex Diameter: 9.29cm / 3.65in
• Angle Stops: 24°, 55°, 85°
• Tripod Weight: 3.135kg / 6.9lbs

MA-40SXO Juggernaut Head

• Ball Diameter: 40mm
• Clamp Type: Arca + Picatinny Dual Rail
• Head Weight: 0.491kg / 1.08lbs

What’s Included

• Leofoto x Mountain Forged Juggernaut S3 Carbon Fibre Tripod
• MA-40SXO Juggernaut Head
• Extra-Long 5-Inch Foot Spikes
• Rubber Feet
• Tool Kit
• Carry Bag
