Leofoto SF-01 Arca-Swiss Lens Foot for Sony Zoom Lenses

Description

Overview

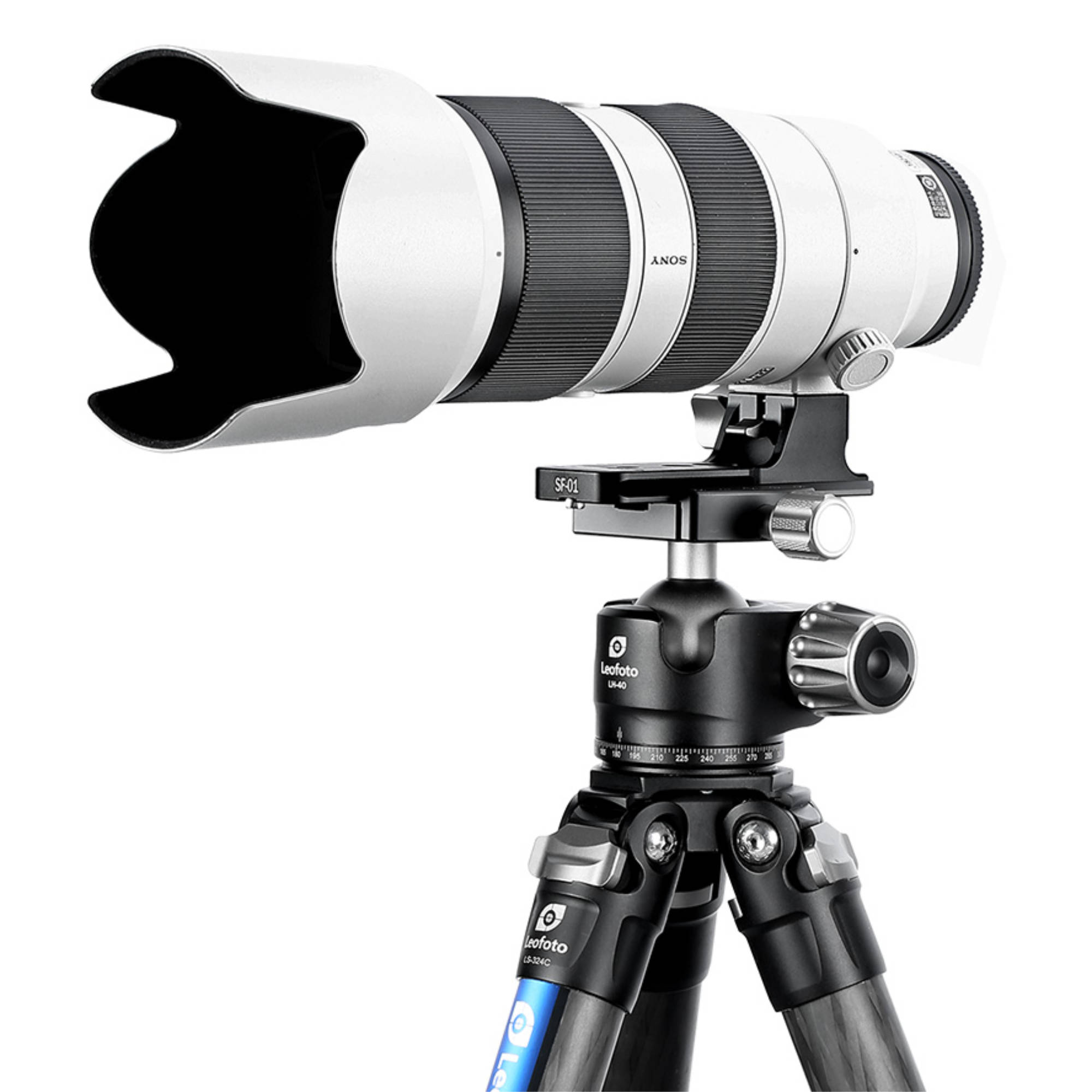

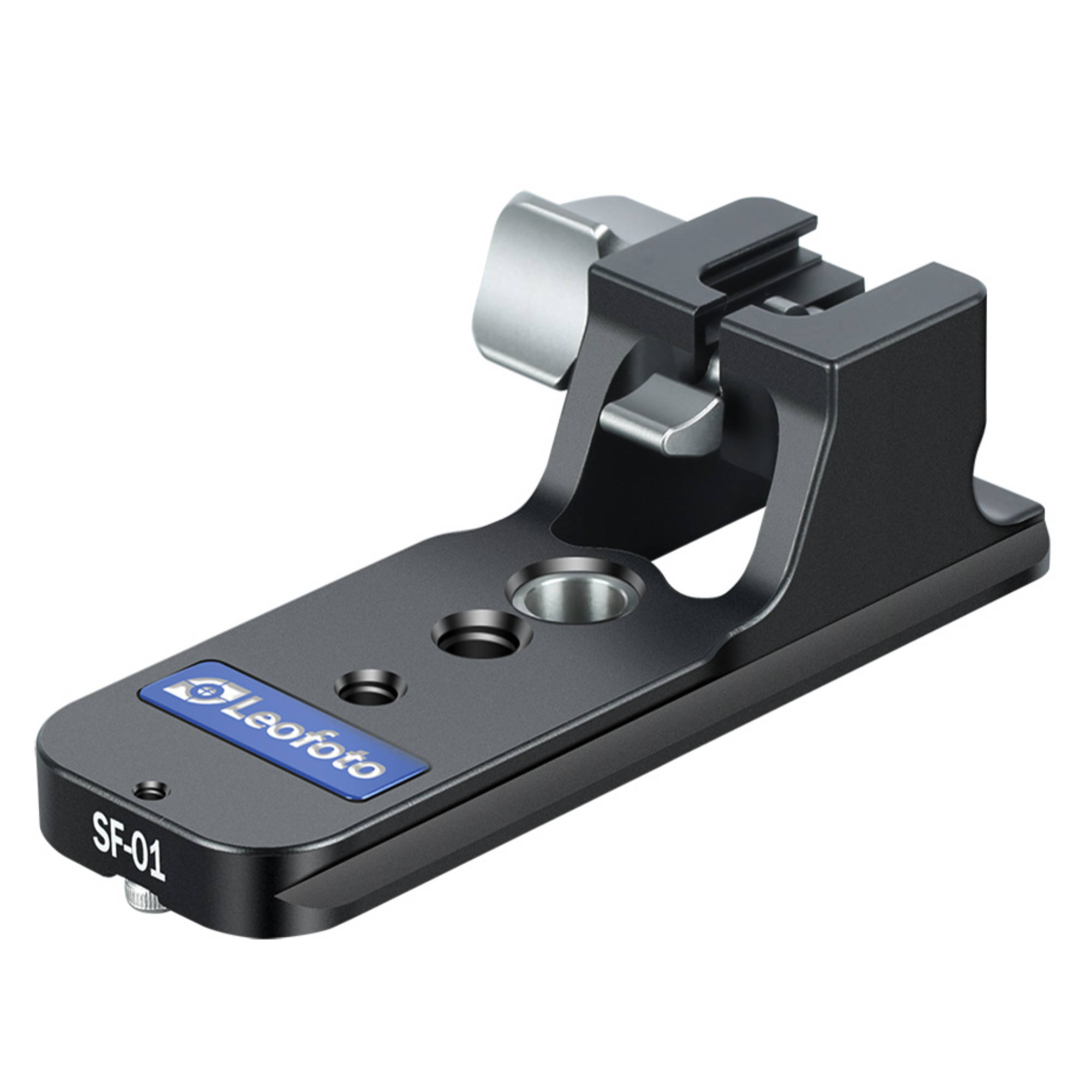

The Leofoto SF-01 Arca Lens Foot is a precision replacement lens foot built for select Sony telephoto zoom lenses, designed to improve balance and support when you’re shooting wildlife, sports, landscape, or video on a tripod or monopod. If you rely on long lenses and want a cleaner, faster quick-release workflow, the SF-01 keeps your rig stable and streamlined.

Made for creators who demand dependable long lens support in the field, this Leofoto accessory integrates an Arca-Swiss compatible dovetail so you can mount directly into an Arca-Swiss clamp—no extra plate required.

Performance & Benefits

Long telephoto lenses amplify vibration and small handling errors. The SF-01 lens foot helps tighten up your support system by improving the lens-to-head interface, giving you a more confident lockup for sharp stills and steadier video.

By integrating an Arca dovetail into the foot, you reduce stack height and remove an extra joining surface. That lower-profile connection can improve balance and keep your Sony lens sitting more securely in your tripod head or gimbal head clamp.

For hybrid shooters moving between handheld and support, the SF-01 speeds up transitions: slide into an Arca-Swiss clamp, lock, and shoot. It also retains the same threaded mounting options as the factory foot, keeping your setup flexible for different support accessories.

Optional safety stop screws add peace of mind when working on uneven ground or when repositioning quickly—helping reduce the chance of the lens sliding if the clamp is loosened for adjustment.

Built from 6061-T6 aluminum and precision machined, the SF-01 keeps weight low while delivering the rigidity needed for telephoto zoom work where repeatable framing matters.

Practical Details

The SF-01 is purpose-built for an Arca-Swiss style workflow: mount your lens directly to compatible ball heads, gimbal heads, levelling bases, and tripod heads that use the Arca dovetail standard. This makes it a clean fit for many Leofoto tripods and support setups commonly used by Australian photographers.

Installation is straightforward: remove the original Sony foot by unscrewing the lock knob, depressing the spring-loaded tab, and sliding the foot forward. Slide the SF-01 on from front to back until it snaps into place, then tighten the lock knob for a secure fit.

In day-to-day use, the built-in dovetail reduces bulk in your bag and keeps the setup tidy—especially helpful when packing a long lens for travel or moving between locations. The integrated QD socket also supports quick strap attachment for safer carrying between shots.

For tripod work, the combination of a low-profile mount and optional anti-twist safety screws supports confident field adjustments—ideal when you’re tracking subjects, changing orientation, or refining composition on a long lens.

Summary

• Improves balance and stability for Sony telephoto zoom lens support on tripod or monopod
• Direct Arca-Swiss compatible mounting for a faster, cleaner quick-release workflow
• Lower-profile connection by eliminating the need for an extra Arca plate
• More secure handling when adjusting position thanks to optional safety stops
• Convenient carry option with an integrated QD socket for compatible straps
• Compatible with Sony FE 70-200mm F/2.8 GM OSS, Sony FE 70-200mm F/2.8 GM OSS II, Sony FE 100-400mm F/4.5-5.6 GM OSS, Sony FE 300mm F/2.8 GM OSS
• Material: 6061-T6 aluminum (precision machined from a solid block)
• Arca-Swiss dovetail standard: built-in
• Threaded mounting holes: 3/8"-16 and 1/4"-20
• Dimensions: 109mm (L) x 41mm (W) x 31mm (H)
• Weight: 90g
• Best for: wildlife and sports with long telephoto zoom lenses
• Best for: landscape and astro work where vibration control supports sharper results
• Best for: video and hybrid shooters using Arca-Swiss clamps on tripod heads or gimbal heads

What’s Included

• Leofoto SF-01 Arca Lens Foot
• Two M3 screws (optional safety stops)

For Australian creators building a reliable support workflow, the Leofoto SF-01 keeps your Sony telephoto zoom lens mounting clean, stable, and fast—an easy way to match your long-lens setup to an Arca-Swiss compatible tripod head system with confidence.
