Leofoto BVL-02 Tilt Adapter with Crank Handle

Description

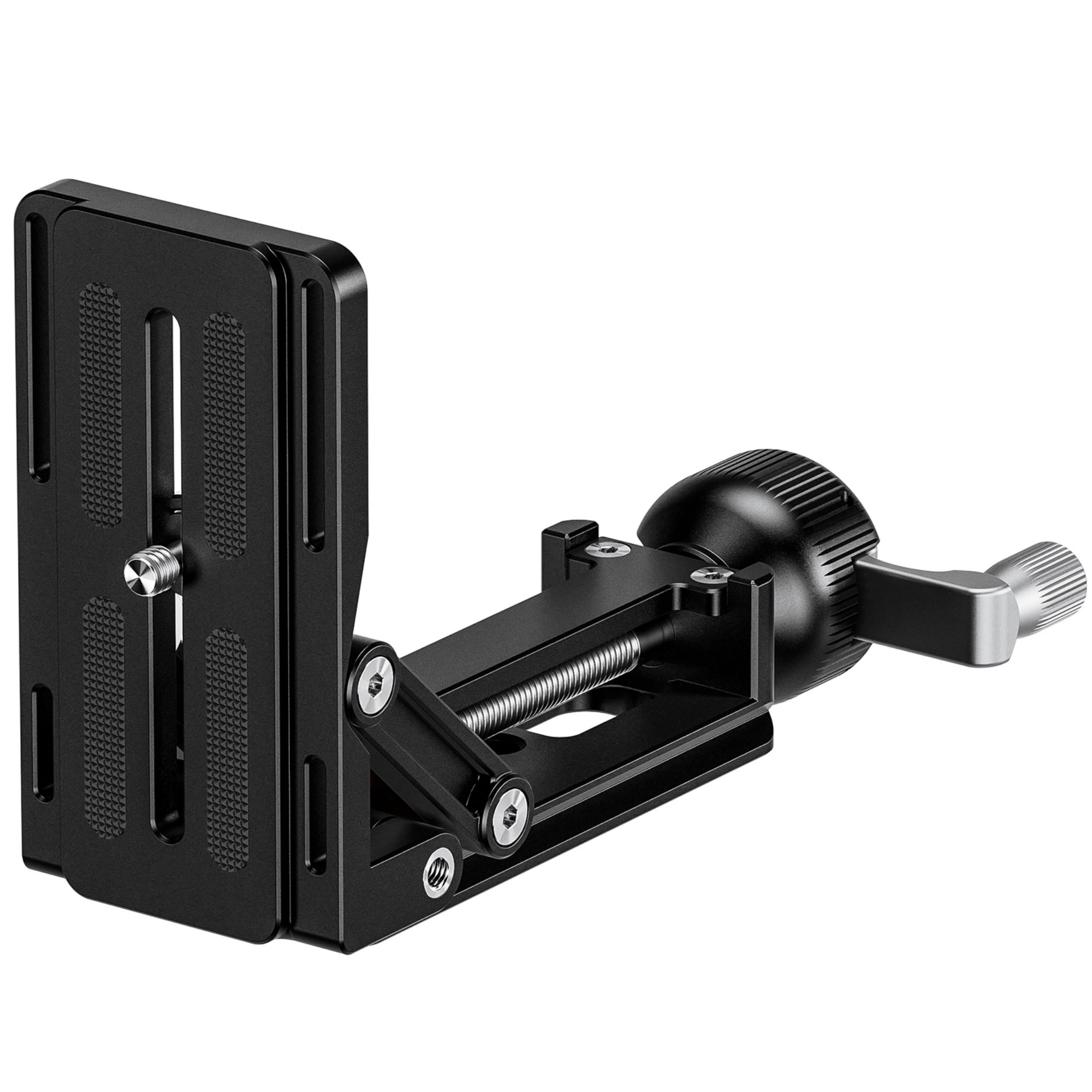

Leofoto BVL-02 Tilt Adapter with Crank Handle

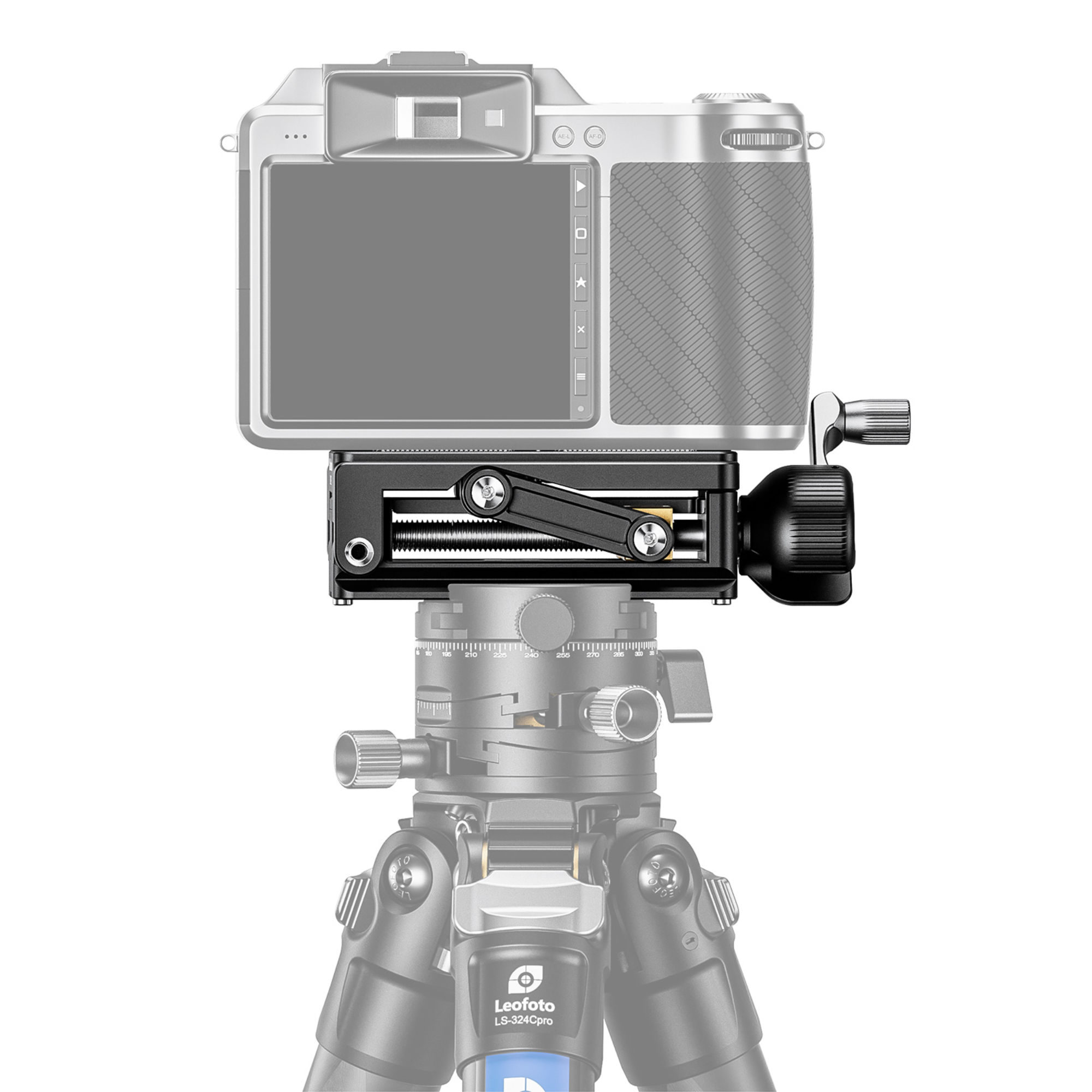

The Leofoto BVL-02 Tilt Adapter is a precision-engineered accessory designed to give photographers and videographers smooth, accurate tilt control with effortless adjustment. Built for high-end users who demand fine framing and creative flexibility, the BVL-02 integrates seamlessly with Arca-Swiss style systems, medium format cameras, and tripod heads to provide unmatched stability and ease of use.

Precision Tilt Adjustment

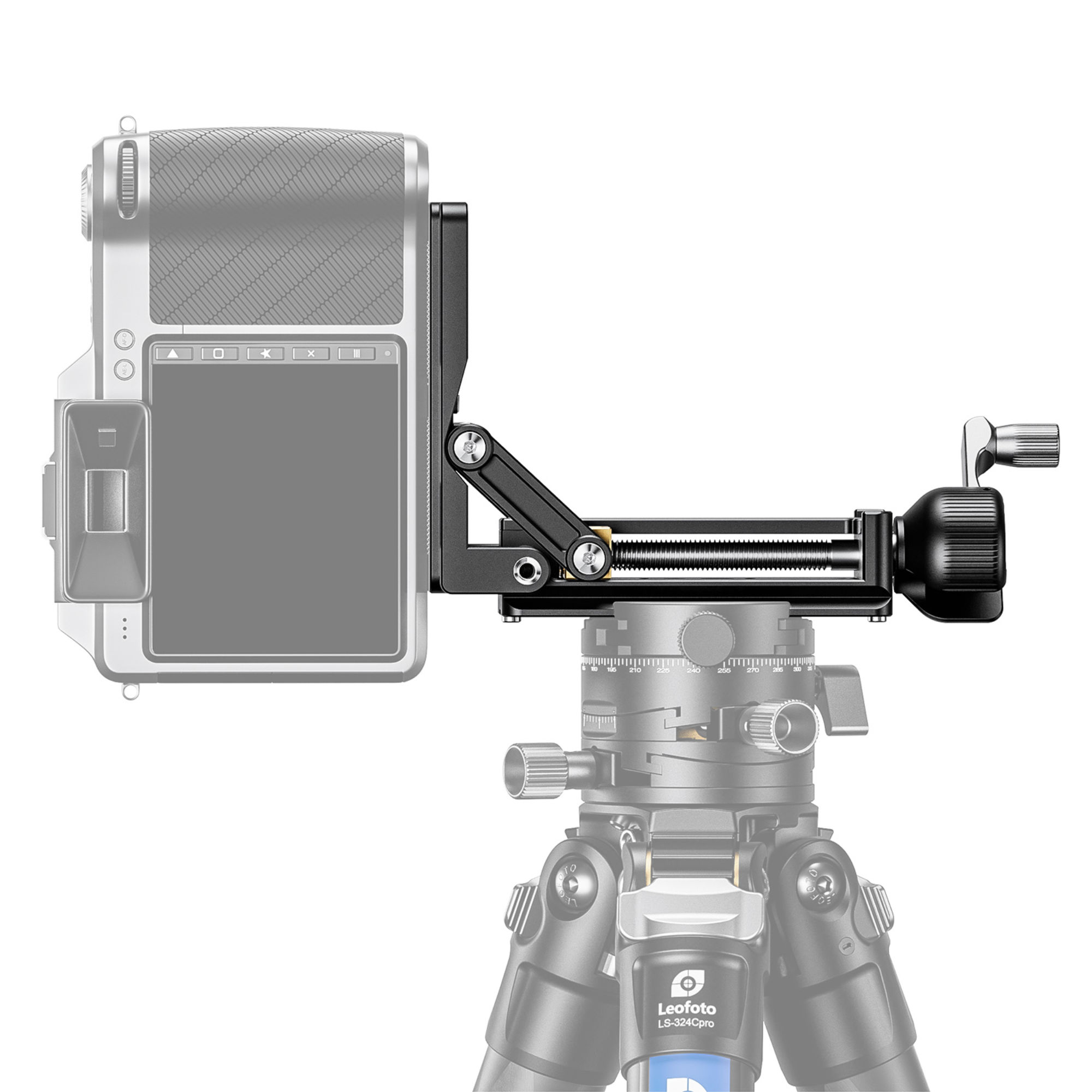

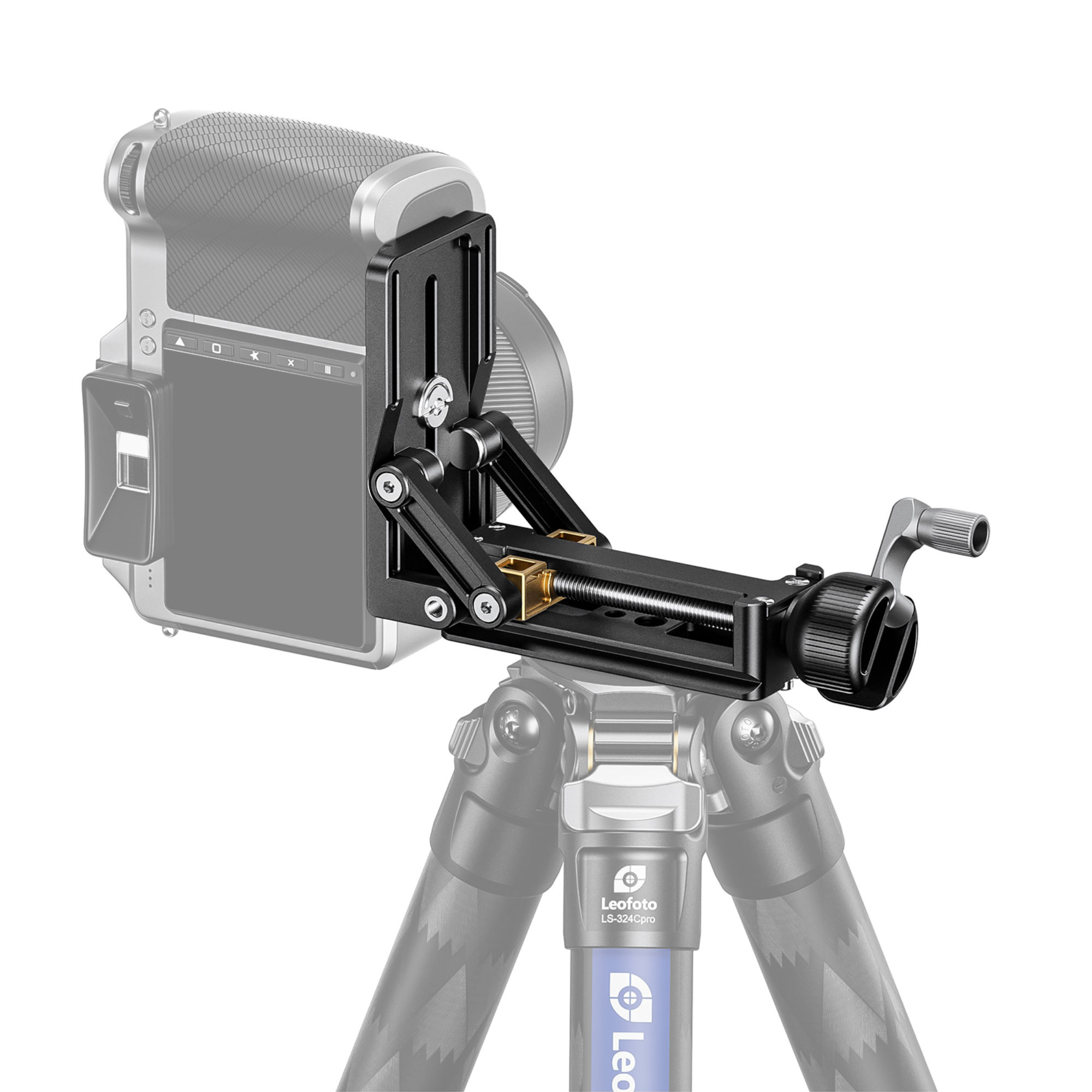

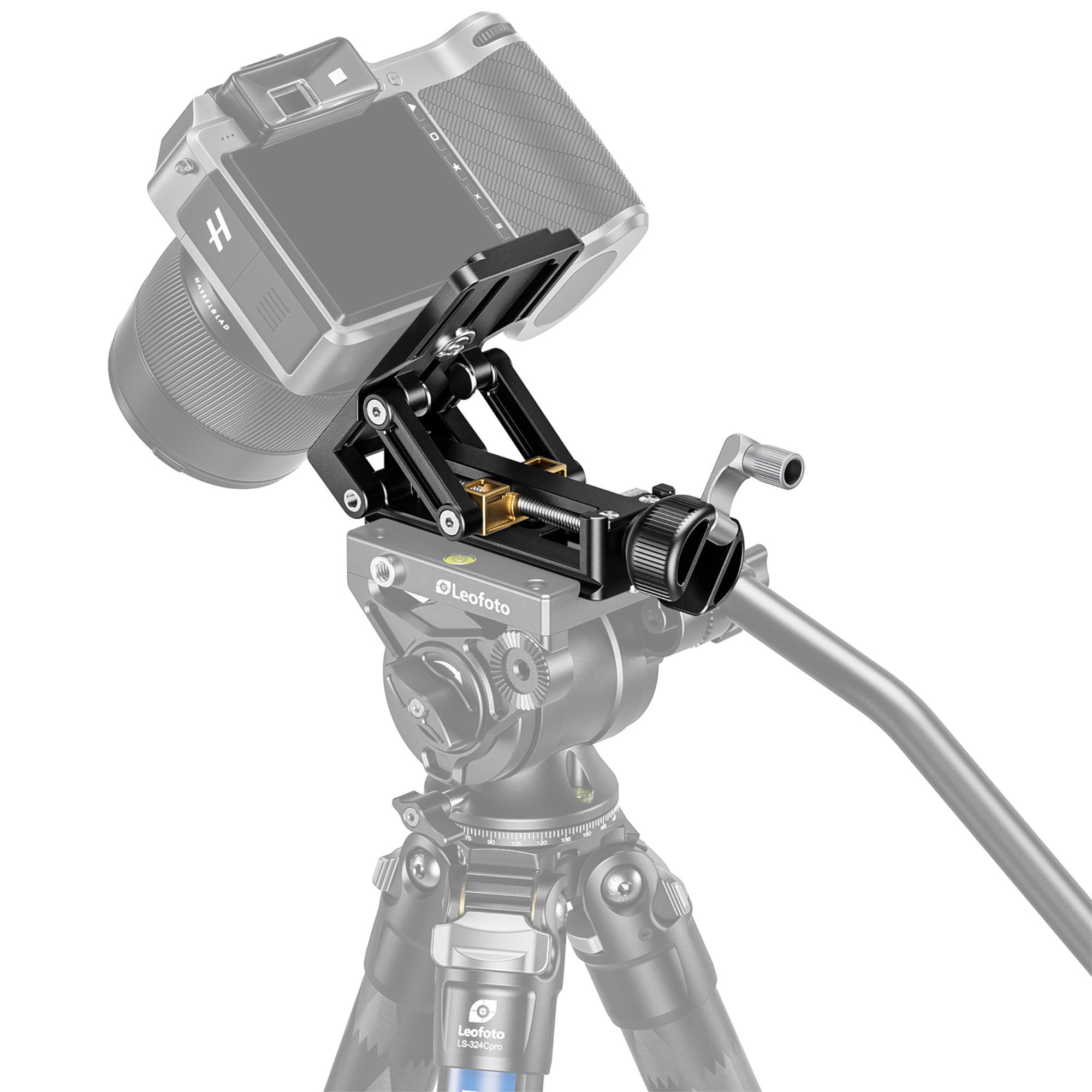

At the heart of the BVL-02 is its hand-crank tilt mechanism, offering a tilt range from 0° to 93°. This allows precise control whether you’re framing landscapes, architectural shots, or product photography. The crank enables wide, sweeping tilt adjustments, while the retractable control knob provides small-angle fine-tuning, ensuring accuracy for even the most demanding compositions. Unlike traditional tilt adapters, the BVL-02 uses an automatic locking system—no need for manual tightening—delivering smooth, reliable positioning during every shoot.

Durability and Strength

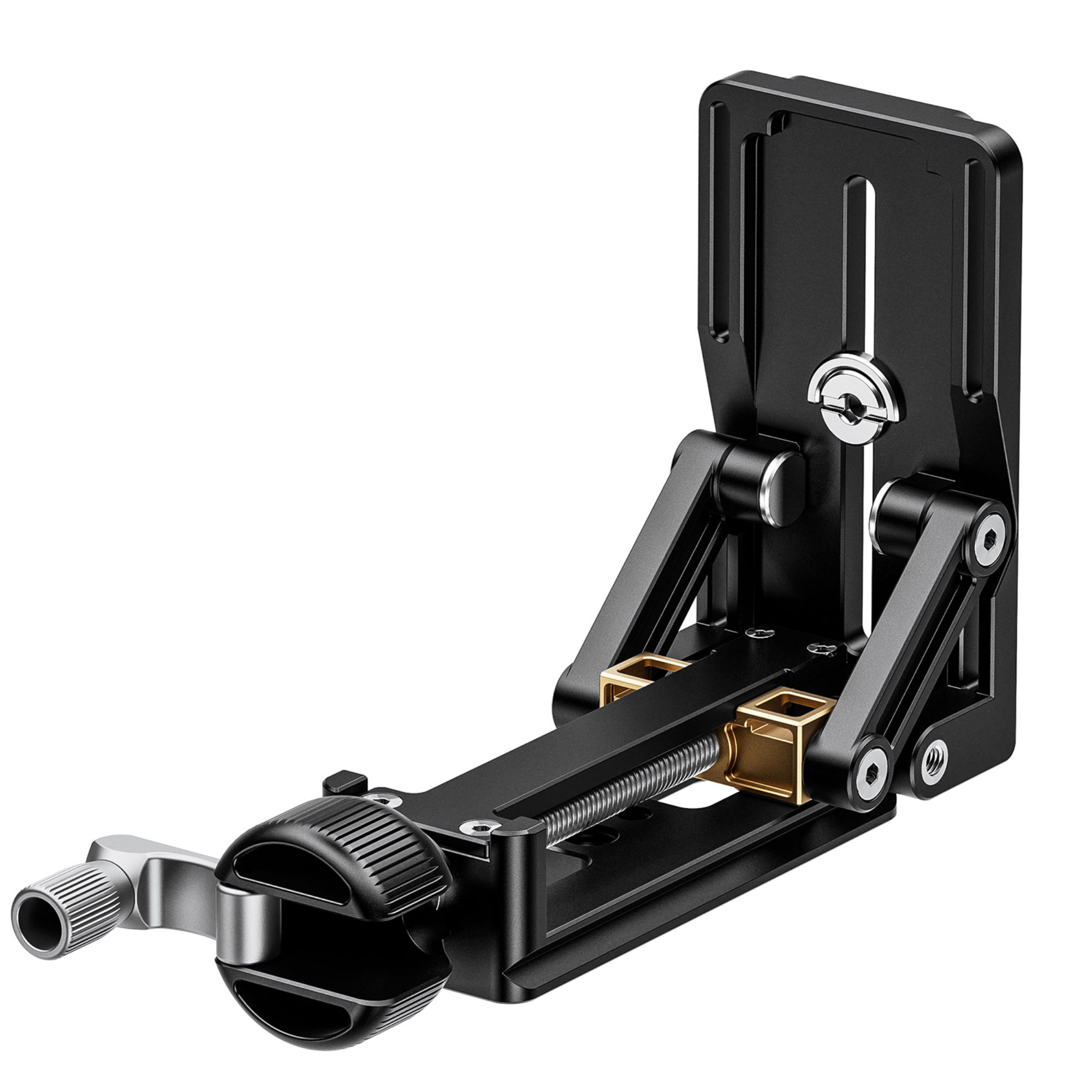

Crafted from CNC-machined aluminium alloy, the BVL-02 is designed for long-lasting reliability without excess weight. At just 0.32kg, it remains lightweight enough for travel yet supports a maximum load of 10kg, making it suitable for everything from compact mirrorless setups to heavier medium format systems. The adapter features a stainless-steel lead screw and brass slider, ensuring consistent performance, durability, and enhanced safety during use.

Versatile Mounting Options

The BVL-02 features a built-in Arca-Swiss style dovetail mount, allowing quick attachment to compatible tripod heads. It also includes both 3/8” and 1/4” mounting threads, giving you flexibility to connect directly to tripods or integrate with other quick-release clamps and plates. For those seeking even faster operation, the BVL-02 is compatible with optional quick-release clamps, enabling rapid gear swaps to keep pace with dynamic shooting environments.

Compact, Travel-Ready Design

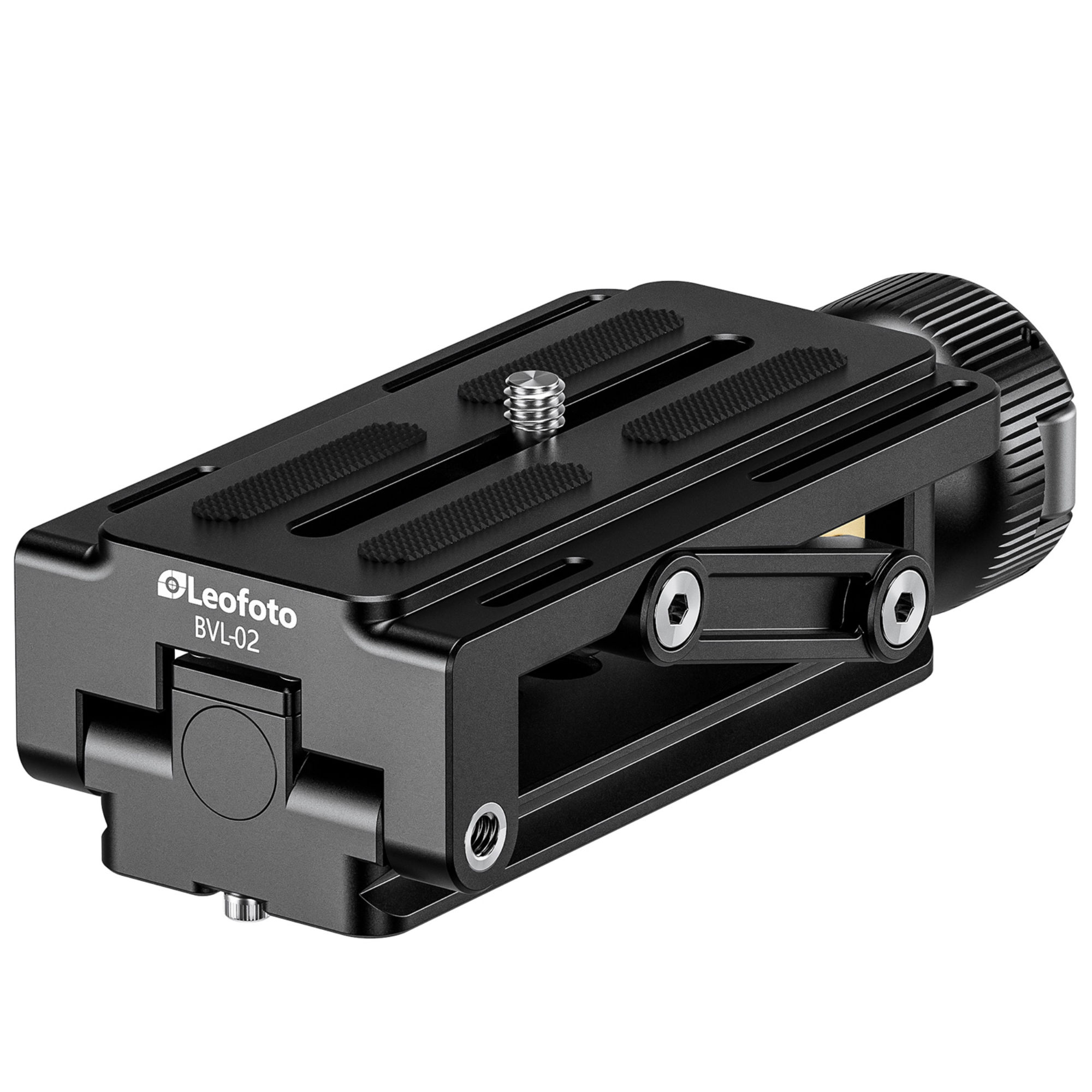

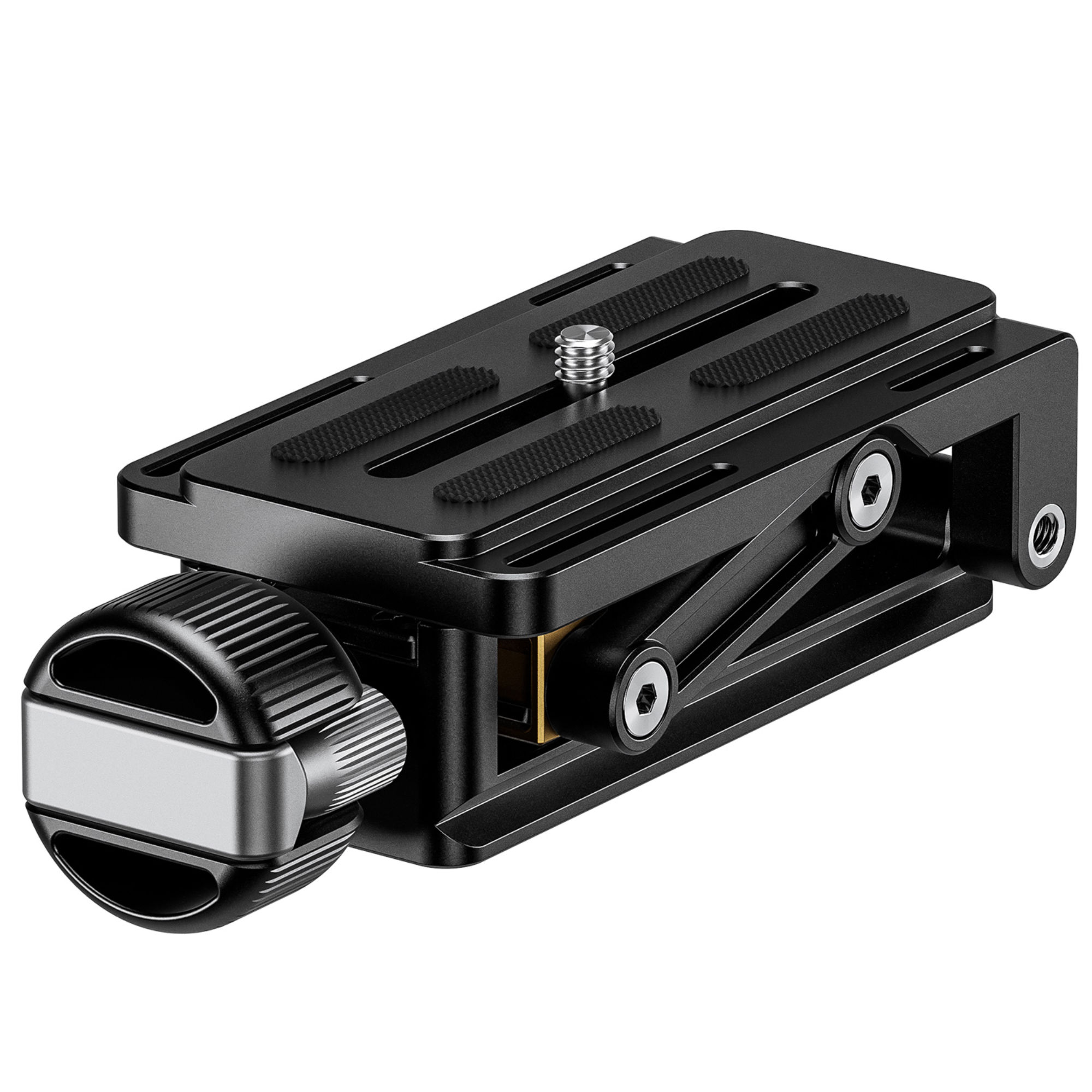

When not in use, the tilt adapter folds down to a slim 130 x 55 x 36mm form factor, making it easy to pack into a camera bag. Despite its compact design, its engineering ensures stability and smoothness, giving photographers confidence whether working in the field or studio.

Key Features at a Glance

• Tilt Range: 0° to 93° with crank control and automatic locking

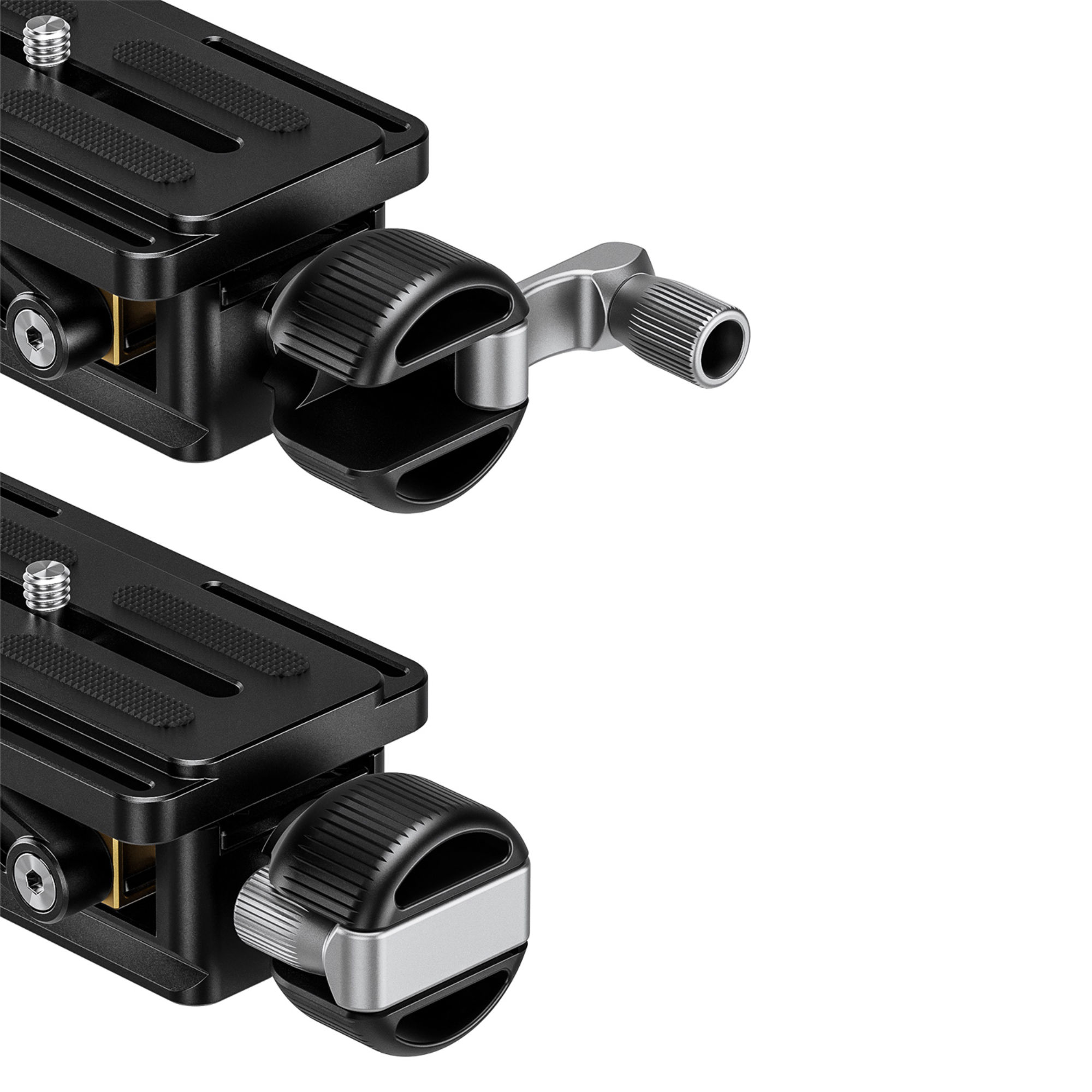

• Two Adjustment Modes: Hand crank for wide tilt; knob control for precise fine-tuning

• Load Capacity: Up to 10kg (22lbs)

• Dimensions: 130mm x 55mm x 36mm (5.1″ x 2.1″ x 1.4″)

• Weight: 0.32kg (0.7lbs)

• Materials: CNC-machined aluminium alloy, stainless-steel lead screw, brass slider

• Compatibility: Arca-Swiss dovetail base, 3/8” & 1/4” mounting threads

• Safety Mechanism: Built-in for reliable, secure operation

• Optional Accessories: Compatible with quick-release clamps for rapid workflow integration

Professional Control, Simplified

The Leofoto BVL-02 is the ideal tool for photographers and filmmakers who need precision tilt control without compromise. Whether you’re shooting stills or video, in the studio or on location, it offers the perfect balance of strength, smoothness, and flexibility—helping you achieve flawless framing and creative expression with ease.
